Dahua IPC-HFW2100 1.3MP Mini Bullet Review

Here’s an outdoor rated mini bullet that fits smaller budget yet does a very good job for less money than it’s rivals. In comparison to the Dahua mini dome I reviewed that costs the same price, it has 1080P resolution (or 2MP) and this camera forgoes resolution down to 1.3MP for more features. Most importantly is that it’s a true day/night camera with an automatic IR cut filter and it has a very bright IR illuminators making is usable in dark situations.

Main Features

  • 1/3” 1.3Megapixel progressive scan Aptina CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 15fps @ 1.3M (1280×960) or 30fps @ 720P (1280×720)
  • 3.6mm fixed lens (6mm, 8mm optional)
  • Day/Night IR Cut Filter
  • IR LED working distance 20m
  • IP66 Rated Outdoor Bullet
  • Powered by PoE
  • Smartphone apps available

Overall, this is an impressive camera with very good image quality, good low light performance, well-organized menus and very small. The IR illuminators are very bright and wide, better actually than its big brother, the IPC-HFW3200C that I reviewed recently.

This is what the web interface looks like when you first log in. There’s options to take a snapshot, manually record, chose a stream and more.

Across the top are tabs for Live (live viewing), Set (configure the camera), Alarm (setup alarms) and Logout. When you click on the Set tab, it takes you this configuration screen.

Motion detection areas are cleverly set by clicking boxes to cover or expose the image. The exposed areas are where you don’t want motion detection and can be any shape that you can create using the box grid.

Configuring the resolution and streams is done on this screen where you can see the choices available.

This camera does not have an SD card slot like the other Dahua cameras I previously reviewed. You can have video events sent to a FTP server.

Now onto the images, how well does this camera perform. I mounted the camera at two places, one at the front of my garage, under the eave,and in my backyard because they represent different lighting situations. This camera had the 3.6mm lens which is fairly wide and covered most of front of my home. Surprisingly, when the camera was set to 1.3MP, objects were about the same size as with the 1080P mini dome using the wider 2.8mm lens, just did not cover as wide an area. If you don’t need to cover as wide an area, this resolution works pretty well.

One downside I noticed to choosing 1.3MP on this camera is the web interface displays the image in a wide-screen format instead of the 4:3 ratio of 1.3MP. I’m hoping this gets fixed in future firmware releases. When viewing images or recordings using their NVR or NVR software like BlueIris or when viewing recorded video, the image aspect ratio is correct. I do want to add that I tested this camera with BlueIris and it worked quite well and the recordings were smooth.

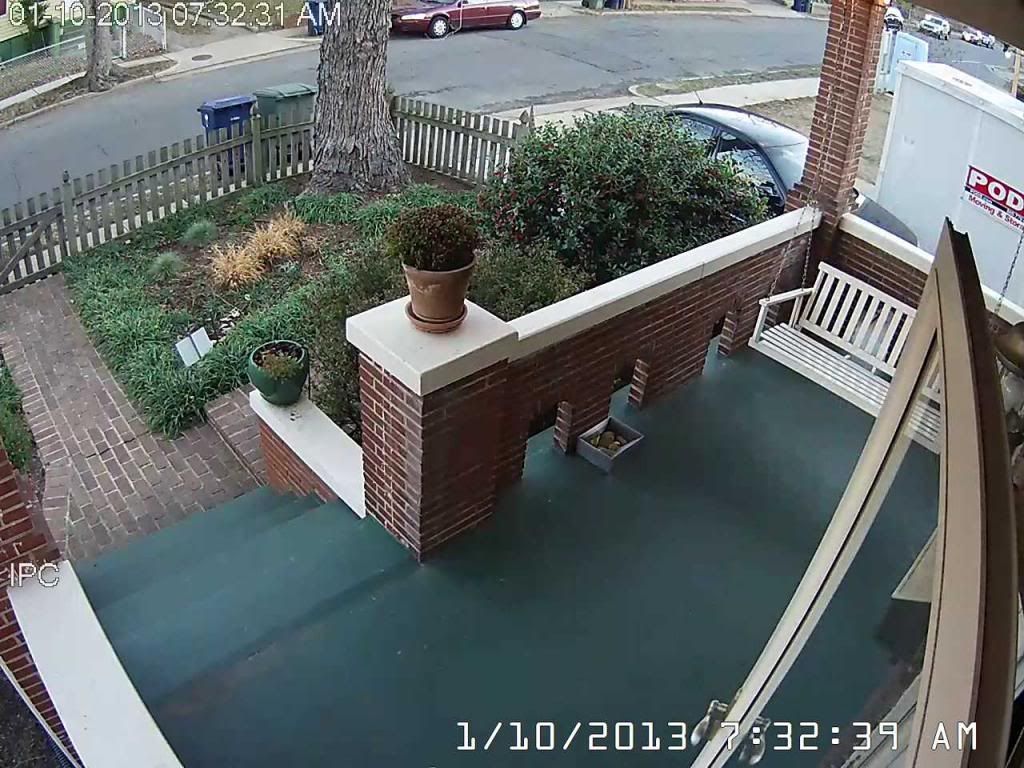

As with my other reviews, click on the images below to see the full size image, straight from the camera.

A slight disappointment with this camera is that white balance is not as accurate as the 1080P cameras from Dahua in all situations. There are hue adjustment to make it closer to what it should be. Not all scenes experience this problem. I expect that this may be correct in future firmware updates.

During the day, in my backyard, the color accuracy was much better.

At night the IR illuminators do a great job of lighting up the area with nice wide even lighting.

This image is taken in darkness with no other lights on. The fence on the far end with the two potted palms is about 50′ away. One disadvantage of the powerful illuminators is that people who are close to the camera are overexposed a bit.

To show you how small the camera is I put it next to the Dahua IPC-HFW3200C that I reffer to as its big brother.

I uploaded day and night videos to YouTube. To see them at the full 720P resolution, you must click on the gear icon and select 720P resolution and then click on the icon with 4 corners to see the video full screen.

The street price for this camera is about $199 and is a good deal for a camera with these features.

The pluses for this camera are;

  • Price
  • 720P at 30fps (or 1.3MP at 15fps)
  • Very bright IR illuminators
  • Day/Night IR Cut Filter
  • Smartphone apps – everyone wants to access their cameras from smartphones these days

The shortcoming of the camera are;

  • You must rely on your reseller for support
  • White balance issues in some cases
  • Displays wide screen format on the web interface even when you chose a different format

Click here to go to the company web page for the camera







Leave a Reply

282 Comments on "Dahua IPC-HFW2100 1.3MP Mini Bullet Review"

Notify of
avatar

Sort by:   newest | oldest | most voted
ask
1 year 4 months ago

I have read so many posts regarding the blogger lovers
however this article is really a good paragraph, keep it up.

Nick
1 year 11 months ago

I noticed that this camera has two additional accounts:one for admin and the other as a user, 888888 and 666666. I could not delete them, but maybe am missing something.

I used the app from robert chou and it listed the Dahua and ilc hfw family so it was able to fire it right up.

I would want to delete those additional accounts, especially the admin, since it seems to be a back door exploit if it “fell into the wrong hands” lol

camera is working great although it will not fire up in the setup window included with Dahua onboard firmware without a “plug-in” on my Mac which seems to me to miss the essence of an “ip” camera.

Tul9033
Tul9033
2 years 8 months ago

has anyone had any luck adding more camera to this Csotco/Sams DVR kit? I’ve got 2 more cameras to hook up to this system and only 4 poe ports on the DVR.
I’m thinking add a POE switch to one of the 4 rear ports to expand the # of ports available.
Seems I remember someone in this thread going over 4 in a similar way, but can’t find it.
Thanks

biter
biter
2 years 8 months ago

Hello! how to keep the stream from the camera on HTTP?

sorry for the mistakes – English is not my native language

David
2 years 10 months ago

Okay. Thanks for explaining the way they sell their cameras. I noticed that the China ed displays the days of the week in Chinese, but I don’t think that will impact me as I plan on using the cameras with Blue Iris. As far as I know, I can create any type of overlay in the software that is independent of what the camera can do as far as overlays go. Hopefully, that is correct. I’m watching the website to see if they get any of the cams in stock so that I can order a few to try out. Thanks again.

David
2 years 10 months ago

Hello- I’ve been reading through this blog, and it is great. I’m trying to decide on a camera system. I have the Blue Iris software that I’m using for a single wireless indoor camera. I want to add some outdoor cameras to monitor my property. I’m pretty sure that I will need at least 6 cameras to monitor everything that I would like to keep track on. That being said, I wanted to see what you thought of the camera DVR setup that they currently have at costco.com.

http://www.costco.com/Q-See-4-Channel-HD-NVR-Security-System-with-1TB-HDD-and-4-1080p-IP-Cameras.product.100079886.html

Are the Q-See QNC8004B cameras any good? The price for this setup is $799. I can purchase two additional Q-See QNC8004B cameras for another $349 at costco.com as well.

http://www.costco.com/Q-See-IndoorOutdoor-HD-1080p-2-Pack-IP-Bullet-Cameras.product.100054309.html

It almost makes more sense to me to purchase two of the 4 channel DVR systems to get 8 cameras, then sell/ebay/craigslist the two DVRs as I am planning on using the cameras with Blue Iris. I would also need to get a PoE router to provide power to the cameras.

Any help/comments that you could provide would be appreciated. Thanks.

noli
noli
2 years 10 months ago

Hi NCC,

Thanks a lot for this complete review which helped me take a decision ! I just received my camera and while playing with the web interface, I found the magical small button to have a proper aspect ratio in the live view ! At the bootom of the page you see 5 buttons, one shows “W:H”, just click and the select “Original” (instead of adaptive), and you’re done, the image now dispays correctly and not too wide !

ISS - IT and Security Solutions
2 years 11 months ago

Hi there,

We have video footage of robbers in night mode where they are approximately 3M away from the Dahua 1.3MP Camera at total darkness at night. On the NVR the footage is semi clear however we would like to enhance the footage and print out the faces for facial recognition. What is the best approch for this? i currently have the footage in .asf format and probably converting it to .avi and correcting the aspect ratio to 640 x 480 px.

Any suggestion please.

Thank you in advance

Francois

Buzz
Buzz
2 years 11 months ago

Hey Guys,

I just found this site and I really like the obious critic and reply from the networkcameracritic 😉

I would like to know if the cams found on aliexpress are originals or clones , as the price is not so much expensive… if clone do you have a link for a good worth site…

Also i see this cam doesn’t work under WIN 8, and that has been launched more than 1 year and would like to know if there is new rev coming or it is just the 3MP cam that replace this model ?

I’m quaite beginner in ip cam but wanted ideally get a wifi cam as more easy to connect… Is there a wifi model…

If not what is for you (networkcameracritic) the worthy quality / price ip cam on the market ? I need D quality and nigh view is also important but not the most…

thanks for your help good guys 😉

Thanks for all

Buzz

franco arcangeli
3 years 2 months ago

vorrei sapere come funzione il SW di centralizzazione quello da istallare sui pc
e il vostro SW per il controllo dei traker e in diretta poi con il video.grazie

Jack Hugs
Jack Hugs
3 years 2 months ago

Thanks NCC.

STAY AWAY from Windows 8 – its horrendous. I have to use it because of work but I detest it. Microsoft made two blunders that relegated them to their status today.
1. They originally shrink down Windows to fit on a phone (PocketPc) – it died.
2. They inflated a mobile OS to fit into desktops (Windows 8)
Both scenarios are just terrible.

Anyways, thanks for your help. I will go dig around on cam.it forums 🙂

jack hugs
3 years 2 months ago

I just purchased this camera from Amazon and though it works well in older versions of IE (Win 7), it wont work in IE and Win8. Also, FF just displays a ‘Quicktime’ emblem when trying to view the camera feed. Nothing plays – just the emblem.

Lots of config options but the lack of being able to actually view the video feed is kind of a big deal. 🙂

Works well with Blue Iris but I need web browser access too. On my works PC running Windows 8, I cant view the web feed from work!

Good review though people should be aware you need Win 7 and older IE to have the same experience as the reviewer.

Aaron
Aaron
3 years 3 months ago
Windows 8 and IE10 have Active X blocking turned on. Don’t count on any Q-See or Dahua IP cameras working on it until the firmware update things with a signed Active X component (good luck). It is very unfortunately that all these cameras/DVRs/NVRs aren’t designed to work with all browsers (interoperability is important to us, not to the OEM it seems). In IE10 you can click on the “Turn off ActiveX filtering” button and the top and it may work. There is also a trick I’ve used to download the webrec.cab, incompress it.. In there you will find an webrec.ini, Right click on it and install. Then it becomes a native plug-in to your system. Unfortunately when you do this, you may make the webrec not work when it tries to load on a different camera or DVR/NVR. Very aggravating. I really hope that Dahua reads posts like these and works on future fixes. On my Android phone I use ipcam viewer lite which seems to out perform the software the OEMs provide. However there is a long standing RTSP streaming bugs that these cameras suffer from that can distort the bottom half of the video stream… Again… Hope for… Read more »
Daniel Fraga
3 years 3 months ago

Just to warn users of this model: do not upgrade to 20130313 firmware. It contains a bug which prevents the camera from recording to FTP, so if you record video to FTP, stay with 20121031 (at least until Dahua fixes it).

Another issue I found is that ffplay can’t play the rtsp stream anymore 🙁 too bad). I’m waiting Dahua replies to my reseller to see if it’s safe to downgrade.

Kirk Sylvester
3 years 2 months ago

Hi Daniel, I just bought the camera and have been looking for the firmware, where did you find it?

But I’m glad I didn’t just yet after reading your comment. 🙂 I won’t upgrade unless I fins issues or learn of extra features. But it’s good to know where to get it since I couldn’t find the firmware on Dahua’s site… or anywhere else for that matter.

Daniel Fraga
3 years 2 months ago

Hi Kirk. Unortunately Dahua doesn’t provide the firmware directly to the user. You have to ask your reseller for it. 🙁

Nomar
Nomar
3 years 3 months ago

Hi networkcameracritic,

Awesome review site. Before I came upon your video of this mini bullet camera, I was thinking of a video surveillance system consisting of Foscam 8905W or Logitech Alert 750e cameras. Looking for a 2 to 3 camera system with a total expenditure of $500. I am thinking now of getting 2 of these along with a PoE switch connected to my Cisco DCP3825 Cable Modem/Wifi Router for remote monitoring with my iPhone 4S using either IP Cam Viewer Pro or Blue Iris. The only thing that I’m afraid of is that if I buy this through Amazon, I will have no technical support. I went to Empire Security Camera’s site and it doesn’t even look like they carry these anymore 🙁

Well, I’m hoping that I can get support here just in case I need a firmware upgrade.

Your thoughts on my train of thinking would be greatly appreciated!

Thanks in advance!

phico
phico
3 years 3 months ago

Hello,

Please could you please tell me where I can find firmware for that webcam ?
I do not find them on Dahua support website ..

I have part of the image that is corrupted for some frames (with zoneminder and ffmpeg)

Maybe there is a firmware fix (I do not have that issue with other webcams model)

Philippe

Jose
Jose
2 years 7 months ago

Hi friend i have this camera and a ZoneMinder but i can’t view this in the server. I Test different setup but i dont see the camera image. Can you please send me the options then you use in the Camera Setup. Thank’s.

phico
phico
3 years 3 months ago

Thanks I’ll ask them but first I must check my zoneminder config.

By the way .. today night it is raining and I have a lot of false movement detection with PIR and rain drops … Do you have any tricks to avoid that ?

Tom
Tom
3 years 3 months ago

Unfortunately no. You have to get it from your re-seller/dealer. Got mine through Empire.

Daniel Fraga
3 years 3 months ago

Did you test recording video to FTP? The new firmware seems broken when recording to FTP. It doesn’t record anything.

Daniel Fraga
3 years 3 months ago

Hi Tom. I received the firmware from the re-seller and I upgraded it succesfully. But I notice it isn’t recording anymore events. I checked all the configuration and nothing helped. Do you have problem with recording motion events using the latest firmware (2.21 3/2013) too?

Thanks.

Tom
Tom
3 years 3 months ago

Yeah I was having the same issue with motion detect. I had to jack up the sensitivity to 6 before it started picking up any motion. This cam is going back for a IR/night vision problem (which was the reason I wanted to update the firmware to begin with, but that didnt solve the issue) So hopefully the replacement will have the older firmware. Have not tried using FTP, I have a NVR.

Daniel Fraga
3 years 3 months ago

Thanks. I sent an e-mail to Empire, since I bought from them too. Let’s see if I get it.

Tom
Tom
3 years 3 months ago

The new firmware for the Dahua versions (2.21 3/2013) adds https login, better help menus, more picture controls among other things. BTW whats the process to upgrade the firmware on the Qsee ones? Is it available on the Qsee website or do you have to call them or Costco?

Dâniel Fraga
3 years 3 months ago

Tom, is there a link available to download this new firmware?

Warren
Warren
3 years 3 months ago

Has anyone got motion detection emails to work? I have two of these that I bought at Costco. At first I was able to get them to send emails with images attached. One of them was sending them way to often though. The other not often enough. They didn’t seem to be obeying the settings. So I wound up disabling motion events on both. Today I thought I’d see if I could get it working more reliably. Now I can’t get an event from either of them. I did the email test and both are able to send emails just fine.

Maybe I’m just missing something silly. Here are my settings:

In Network->SMTP(E-mail)
Interval: 180 secs

In Event->Video Detect->Motion Detect
Enabled is checked
Working Period – all day every day
Anti-Dither: 5 secs
Sensitivity: 6 (this is most sensitive??)
Area: nothing masked
Send E-Mail is checked

Are there any other settings that I might be missing?

Thanks,
Warren

Tony
Tony
3 years 3 months ago

Mask an area you want to detect motion, I think that could be your problem.

Warren
Warren
3 years 3 months ago

Perhaps I did have it backwards. I assume that the blue boxes were the area to ignore motion, but after re-reading the doc I think it the other way. No luck either way though. All masked, none masked, some masked, I don’t get a single email. Do I need to reboot for changes to take effect or something?

I’m using the firmware from 12/7/12. Is there a newer, or better, version out there?

Thanks,
Warren

juan
juan
3 years 4 months ago

Hello,

I have an IP camera HFW2100 and sends alarms have attached detecion motion picture or video. Only text receipt with date and time.

Can you help?

juan
juan
3 years 4 months ago

Speak of alarms smtp (e-mail) with photo or video.
I only receive notice of the time and date.

Joem
Joem
3 years 4 months ago

Thanks.

Is the ridged ring a lock nut? I would hate to ruin the camera trying to loosen it if it is not.

Tul9033
Tul9033
3 years 4 months ago

I leave all the cables attached, but I do unplug the power or POE while removing/installing.
I’ll then plug back in to focus and unplug once again to reassemble. Focusing is a manual trial and error process. I usually try and get some large text like a Dell server box for example and focus until the text is clearest/sharpest. I set it out about 10-15 ft. The lens length will totally depend on lens spec and even brand.

Joem
Joem
3 years 4 months ago

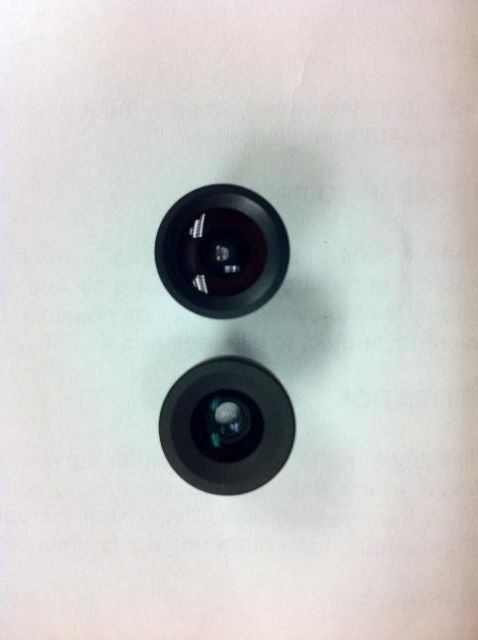

I am trying to change the lens in this camera from 6.0 to 4.2mm. I have never disassembled one before and wonder if there are gotchas waiting.
